トンネル吹付|株式会社エムシーエム


MCM Co., Ltd. has provided
various machinery and materials
especially for tunnel construction market in Japan.

What is our
"Sub-Shot System" ?

Sub-Shot System
Updated machine name Old machine name Max indicative mortar spray capacity
M-PAC2 M-PAC 2m3/Hour
M-PAC5 M-PAC-L 5m3/Hour
M-COMPO2 Mini-PAC 2m3/Hour
M-COMPO5 Mini-PAC-L 5m3/Hour
M-COMPO2-TBM Sub-Shot System for TBM 2m3/Hour
M-COMPO5-TBM N/A 5m3/Hour

Outline of our mortar spray system and material

In 1994, our R&D has been started according to strong requirements of contractors, who had been applying the conventional shotcreting method. Since then, we have continued development of the system through trial and errors and now our good reputation is widened to overseas market rapidly.



The requirements were
(1) Much quick setting spray method for cost effectiveness and safety
(2) Much less rebound for less work for cleaning
(3) Much less dusts for worker's health
(4) Simple and easier operation for less chance of accident
(5) Human and Environment friendly material for workers and globe

After 2 years of trial and errors, we have brought an innovative technology product in both material and the spray system in the domestic market.
i.e. we DENKA and MCM alliance team has met all of the above requirements of customers. Actually we have dominated domestic market by our technology now.

Features are
Very Quick setting and hardening 15 N/mm2/24Hours/20℃
Near-zero rebound 1~2%
Applicable for wet/watery roof/wall surface 7 Liters/minutes acceptable
Easy nozzle handling about 3kg of nozzle at low pressure
Flexible in STOP- RUN (less waste) Waste mortar remained in hose only.
Easy and simple operation By automatic control system
Well size-controlled sands Max size of sand particle = 3mm
Synthetic fiber contained For better flexural strength

Consequently

  • Much simple operation to avoid human error
  • Cost minimized by shorter construction time
  • Safety much increased by quick setting and hardening
  • Friendly to Health and Environment

Photos and video album



1. TMB Small dia. tunnels(2~3m dia.)

001 (1)
002 (2)
003 (1)
004 (1)
005 (1)

ここまで
(公開サイトには表示されません)



2. TBM Middle dia. tunnels(3.5~6m class)

001 (2)
002 (3)
003 (2)
004 (2)
005 (2)
006 (1)
001 (1)

ここまで
(公開サイトには表示されません)



3. Small dia. NATM tunnel excavation

001 (3)
002 (4)
003 (3)
004 (3)
005 (3)
006 (2)
007 (1)

ここまで
(公開サイトには表示されません)

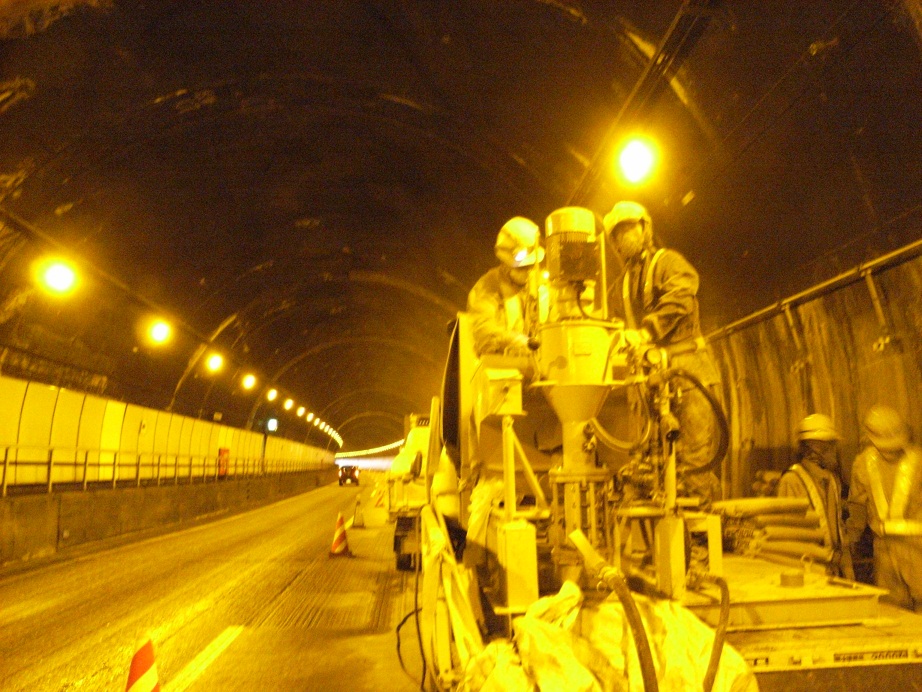

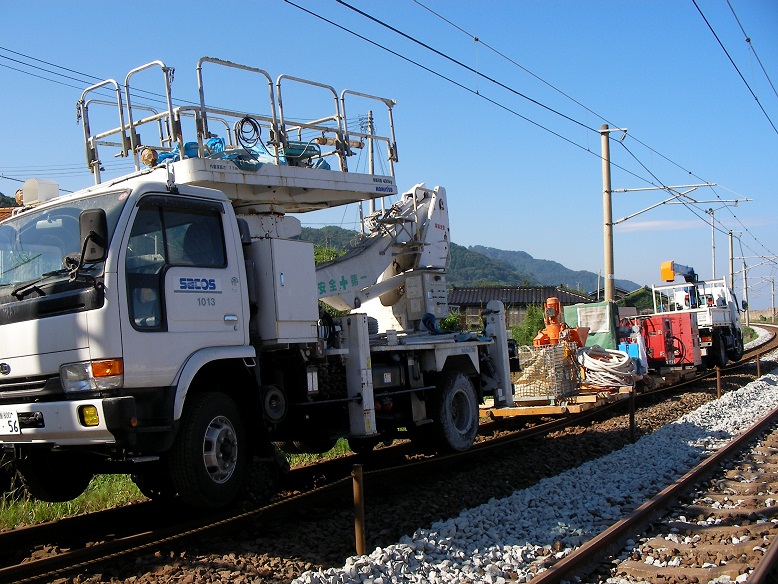

4. Road / Railway tunnel repair work

003 (4)
004 (4)
005 (4)
007 (2)
001 (1)
001 (1)
001 (4)
002 (5)
003 (5)
004 (5)
005 (5)
001 (1)

ここまで
(公開サイトには表示されません)



5. Headrace tunnel repair work

001 (5)
002 (6)
003 (6)
004 (6)
005 (6)
006 (3)
007 (3)
008 (1)
009 (1)
001 (1)
001 (1)

ここまで
(公開サイトには表示されません)



6. Robotized mortar spray work

001 (6)
002 (7)
003 (7)
004 (7)
005 (7)
006 (4)
001 (1)

ここまで
(公開サイトには表示されません)



7. Shaft / Caisson and other

002 (8)
003 (8)
005 (8)
001 (1)
001 (1)
001 (7)
002 (9)
003 (9)
004 (8)
005 (9)
006 (5)
007 (4)
008 (2)
001 (8)
002 (10)
003 (10)
004 (9)
005 (11)
006 (6)
001 (1)
001 (1)
001 (1)

ここまで
(公開サイトには表示されません)



8. Overseas activities

004 (10)
002 (11)
001 (9)
005 (12)
007 (5)
009 (2)
010 (1)
001 (1)
001 (1)
001 (1)

ここまで
(公開サイトには表示されません)

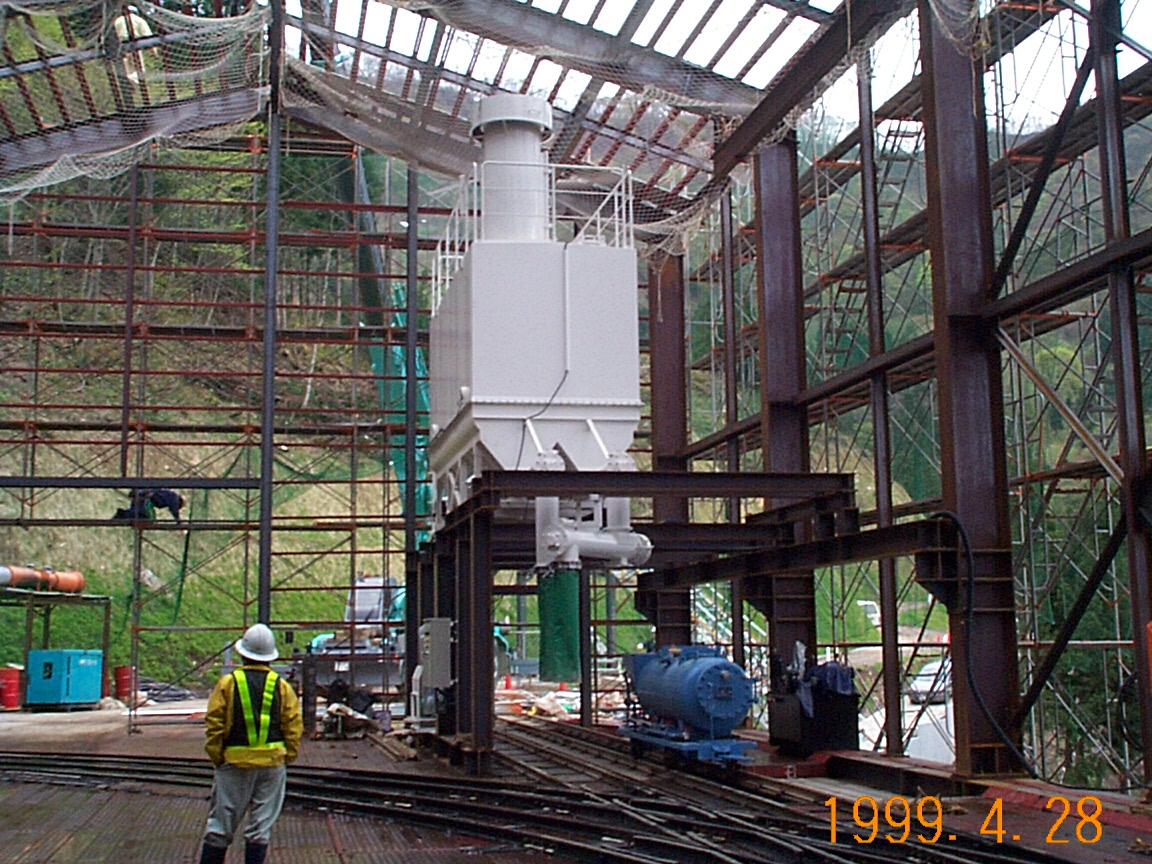

9. Lift tanks, Silos, Dust collectors

001 (10)
002 (12)
001 (11)
002 (13)
003 (11)
004 (11)
005 (13)
006 (7)
007 (6)
001 (12)
002 (14)
001 (13)
002 (15)
003 (12)
004 (12)
005 (14)
006 (8)

ここまで
(公開サイトには表示されません)

Ourline drawings

M-PAC2 M-COMPO2 M-COMPO5
2m3/H 2m3/H 5m3/H
Most popular in tunnel excavation and repair work, easy operation in compact package Flexible to mount on various type of excavation system or machine, space saved For bigger charging capacity, we have developed a bigger machine called M-COMPO5 with indicative capacity of 5m3/Hour.
